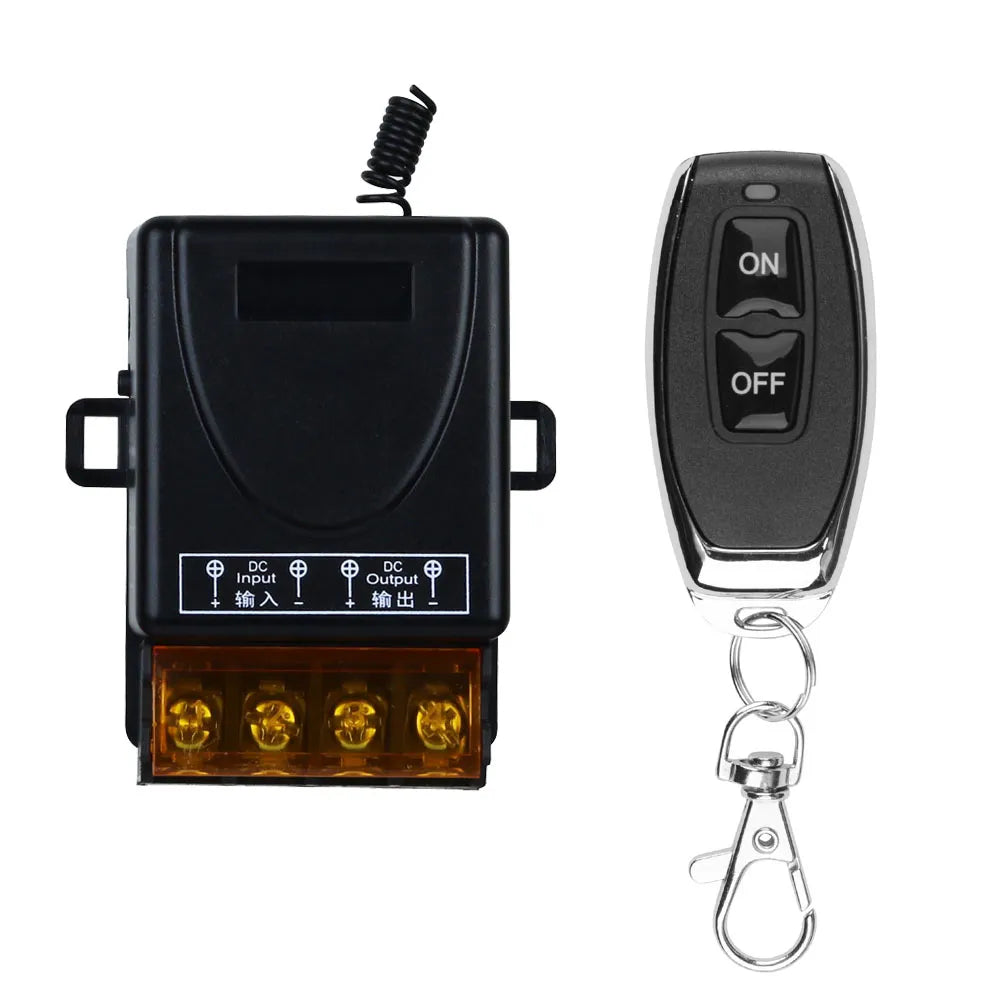

Sikunuo | Signal Receiver Wireless Remote Control Switch Relay
Sikunuo | Signal Receiver Wireless Remote Control Switch Relay
This product is a multifunctional device that facilitates wireless management of various electrical devices. With its superior signal reception, this relay empowers users to control switches remotely from afar. It is crafted to offer ease and adaptability in handling electronic gadgets using a wireless remote control mechanism.
About Learning and Clearing Method:
Apply 12V to the Receiver,Momentary: press the Learning Button once. the Led indicator blinks once, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.Toggle: press the Learning Button twice. the Led indicator blinks twice, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Latched: press the Learning Button three times. the Led indicator blinks three times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (5S): press the Learning Button four times. the Led indicator blinks four times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (10S): press the Learning Button five times. the Led indicator blinks five times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (15S): press the Learning Button six times. the Led indicator blinks six times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Clearing: Hold down the Learning button for 8 seconds. When the receiver Led indicator blinks three times and then goes OFF, it signifies that the code has been cleared.
SPECIFICATIONS

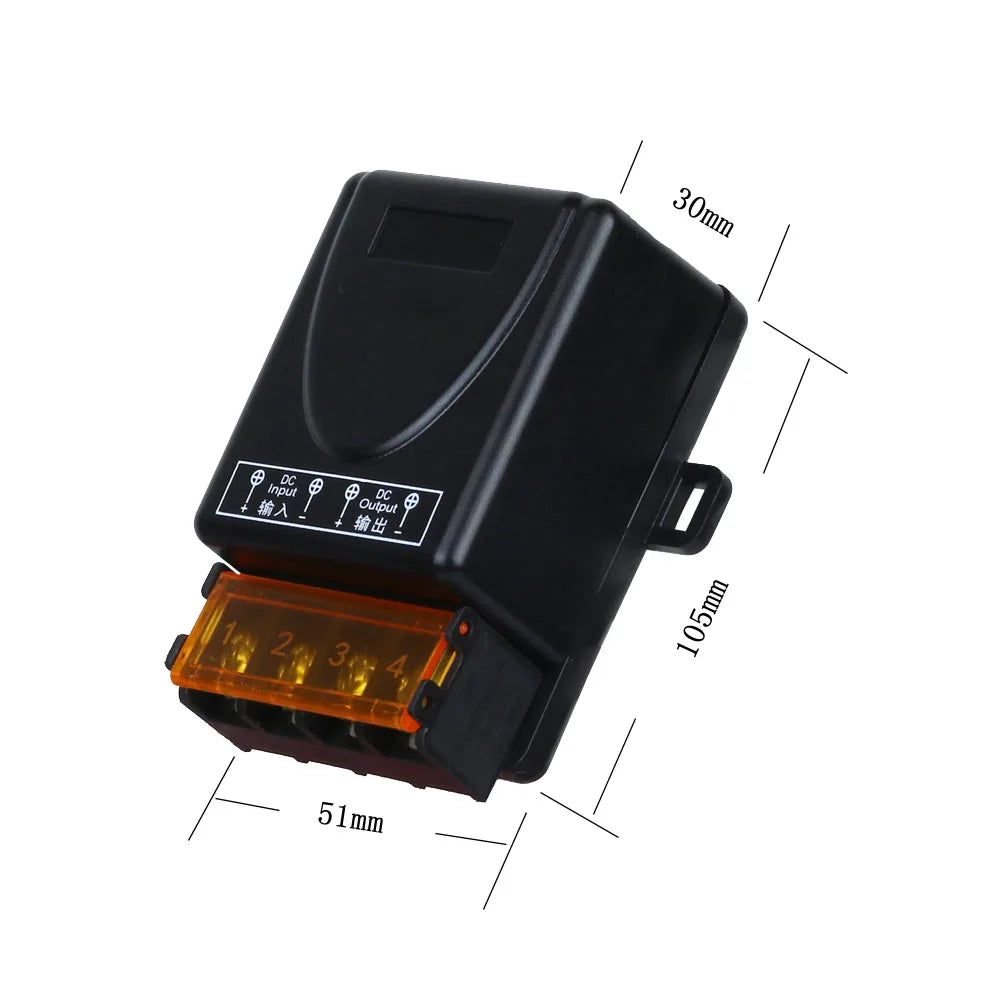

About Receiver:1. Operating voltage: DC12V-72V2. Standby current: Less than 8mA3. Operating temperature: -40 Degrees to +80 Degrees4. Receiver sensitivity: greater than -105dBm5. Working frequency: 433MHz6. Output voltage: Input=output8. Maximum load current: 30A9. Dimensions: 105 x 51 x 30mmAbout Operating Mode:Momentary: Relay: Press and hold -> On; Release -> Off.Toggle: Relay: Press -> On; Press the same button again -> Off.Latched: Relay: Press -> On; Press a different button -> Off.Delay time :Press the remote control button, the corresponding relay activates and remains functional until the time limit is reached.
Usage: Universal
Usage: Lighting
Usage: Electric Door
Usage: SWITCH
Wireless Technology: RF
App Support: No
Certification: CE
Certification: FCC
Certification: PSE
Frequency: 433 MHz
Contents of the Box:
1 x Signal Receiver Wireless Remote Control Switch Relay
